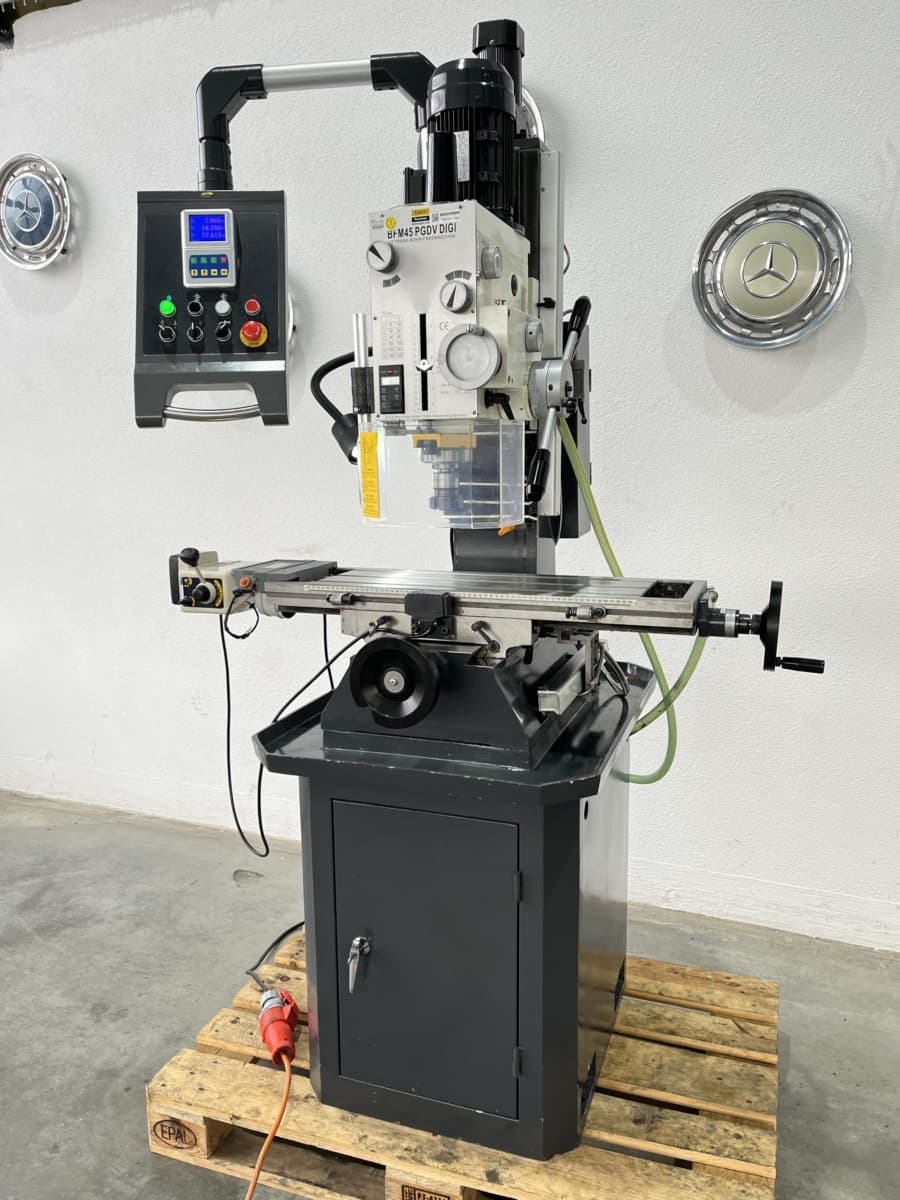

EPPLE BFM 45 PGDV Digi
Beschreibung
Technical data Drilling capacity in cast iron 50 mm Drilling capacity in steel 45 mm Milling capacity of cutter head max. 80 mm Milling capacity of the end mill max. 32 mm Thread cutting M 12 Projection 265 mm max. distance spindle - table 440 mm Swivel range +45°/- 90° Spindle holder MK 4 Motor 2 - stage Spindle speed range 12 Mechanical feed, yes Speed ??range 75 - 3,200 rpm Quill stroke 130 mm Height adjustment of milling head 410 mm Table size 760 x 240 mm Travel 560 x 190 mm T-slot size (table) 14 mm Number of T-slots (table) 3 Motor power 400V / 0.85kW / 1.1kW Dimensions 1,260 x 960 x 2,100 mm Weight 480kg including collet set including coolant system including LED work light including substructure Solid cast design Head height adjustable via spindle Quill delivery via hand lever, fine adjustment via handwheel Wide speed range 2-stage motor 12 speeds Right/left rotation Safety switch with emergency stop switch High concentricity thanks to tapered roller bearings Mechanical quill feed for drilling via quill lever Thread cutting device 3-stage vertical feed Drilling depth stop Adjustable wedge strips Drilling-milling head tiltable, to the right 90°, to the left 45° Electric table feed, mechanical head feed Coolant device LED work light substructure
