DREHER 1676 AV RA2 / 2370 B

Beschreibung

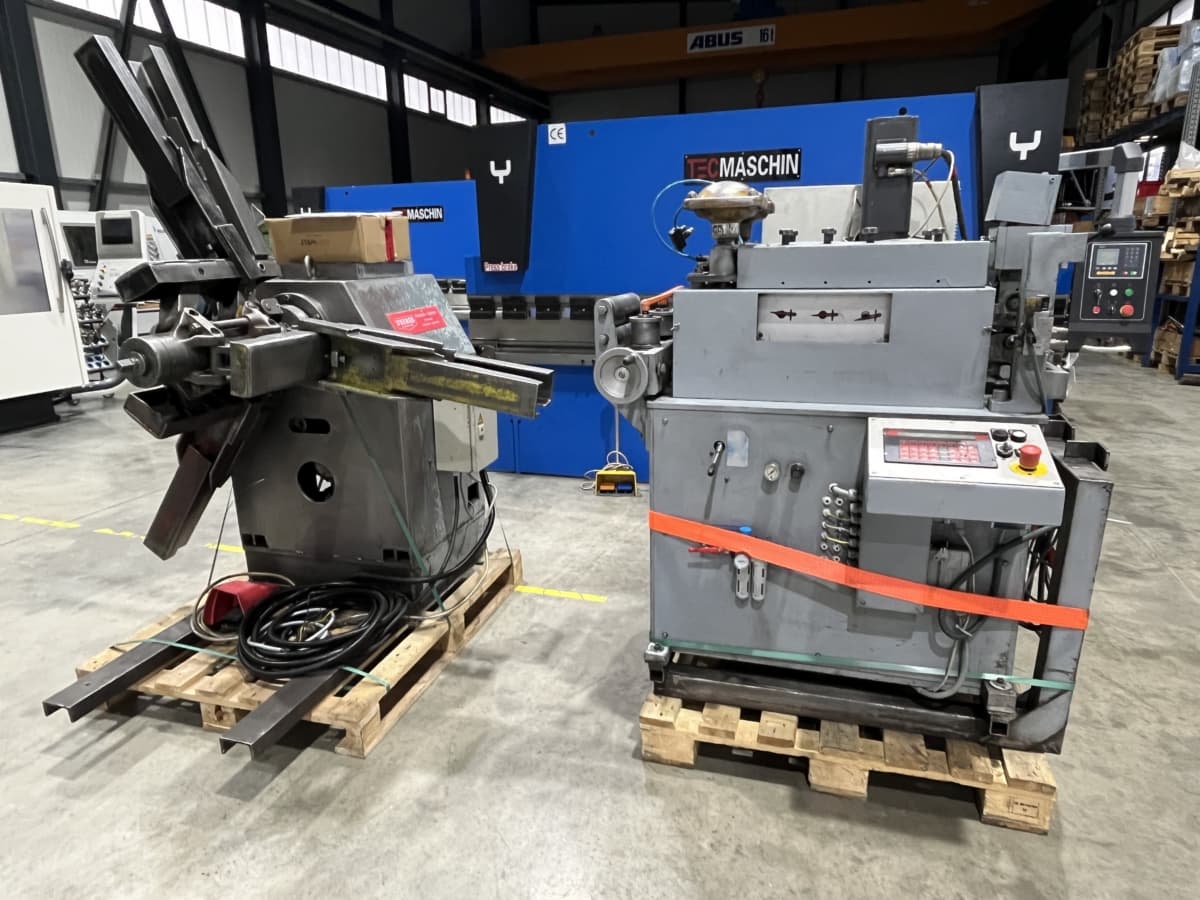

Coil turner 2370 B Load capacity 1.5 ton. Bandwidth 300 mm Coil inner diameter: 400 - 500 mm Arm length per arm: 670 mm Dimensions: depth 1,230 mm, housing height 1,100 mm, width 1,700 mm Weight: 760 kg. Straightener Dreher 1676 AV-RA2 Material width: 200 mm Material thickness: 08 - 4.2 mm Number of straightening rollers: 7 Number of pull rollers: 4 Straightening rollers diameter: 80 mm Would be down by a running press Documents circuit diagrams, operating instructions etc. available

Technische Daten
