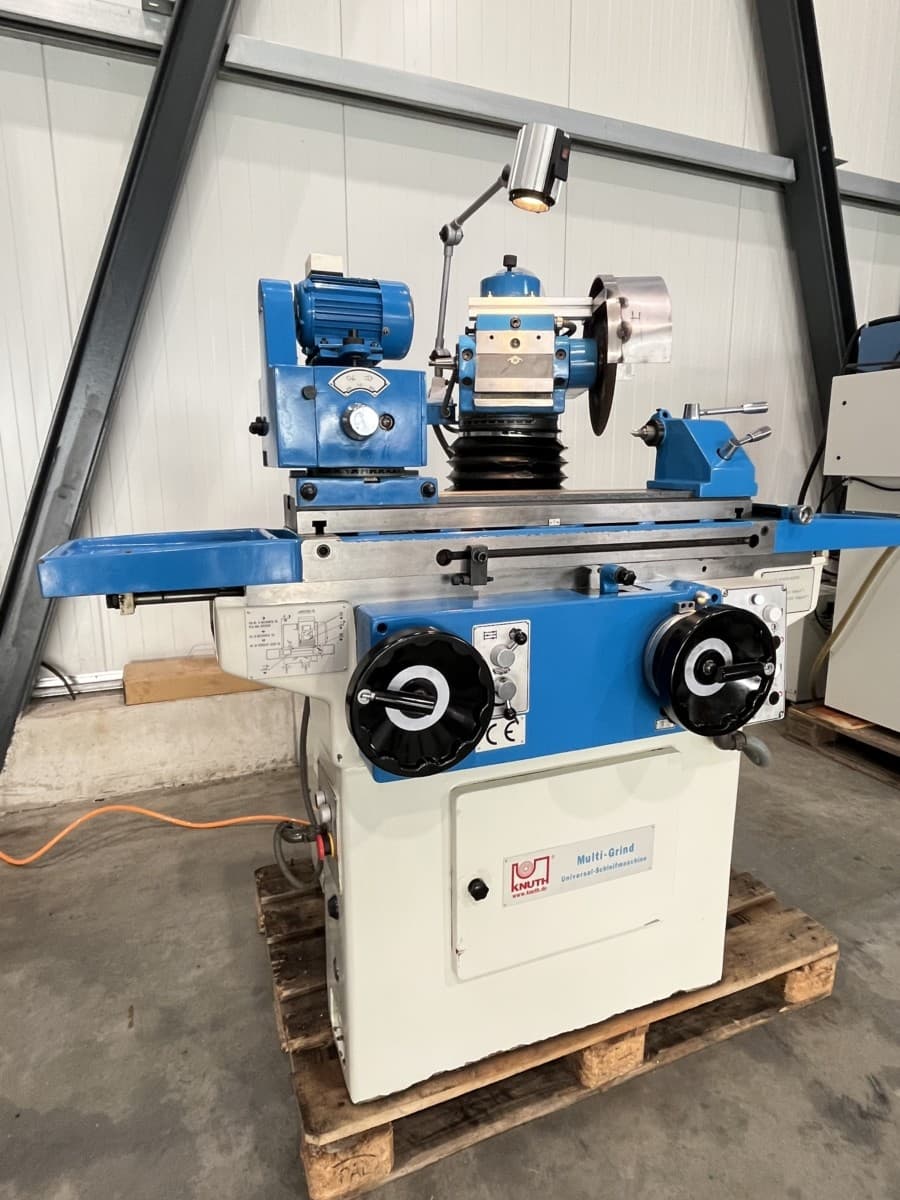

KNUTH Multi Grind
Beschreibung
Possible grinding options Round loops outside and inside surface grinding tool grinding Hydraulic feed Extensive accessories Technical specifications Workspace Grinding diameter: 200 mm Workpiece length: 500 mm External grinding dimensions, optimal: Ø 5-50 x 400 mm Internal grinding dimensions, optimal: Ø 10-50 x 75 mm Tool grinding dimensions: 200 mm x 500 mm Workpiece, surface grinding length: 200 mm Workpiece, surface grinding width: 50 mm Workpiece, weight: (max.) 10 kg Table swivel range: (max.) +45° / -30° traverse paths Travel Z-axis: 480 mm feed Feed per handwheel revolution X-axis, fine: 1 mm Feed per handwheel revolution X-axis coarse: 4 mm Feed per scale division X-axis, fine: 0.005 mm Feed per scale division X-axis, roughly: 0.02 mm Height adjustment scale: 0.01 mm Longitudinal feed speed: (hydraulic) 0.01 m/min - 6 m/min manual, hydraulically assisted: 7 m/min headstock Swivel range of the work headstock: ± 90° Speed: Work spindle - 110 rpm - 300 rpm Working spindle cone: 2 MK Chuck diameter: 100 mm grinding headstock Grinding spindle speed: 2500 rpm Internal grinding spindle speed: 13500 rpm Grinding headstock swivel range: ± 90° Grinding headstock: vertical / transverse 200 mm tailstock Height adjustment per turn of the hand wheel: 1 mm Tailstock cone: 2 MK Tailstock quill stroke: 14 mm drive power Drive power of the machine: 2.525 kW Engine power main drive: 1.1 kW mass and weight Grinding wheel dimensions - height: 200 mm x 20 mm x 75 mm Grinding stone dimensions internal grinding: (min.)-height 10mm x 10mm x 3mm Grinding stone dimensions internal grinding: (max.)-height 25 mm x 20 mm x 6 mm Dimensions: (length x width x height)-height 1.52m x 1.35m x 1.4m Weight: 1300 kg
