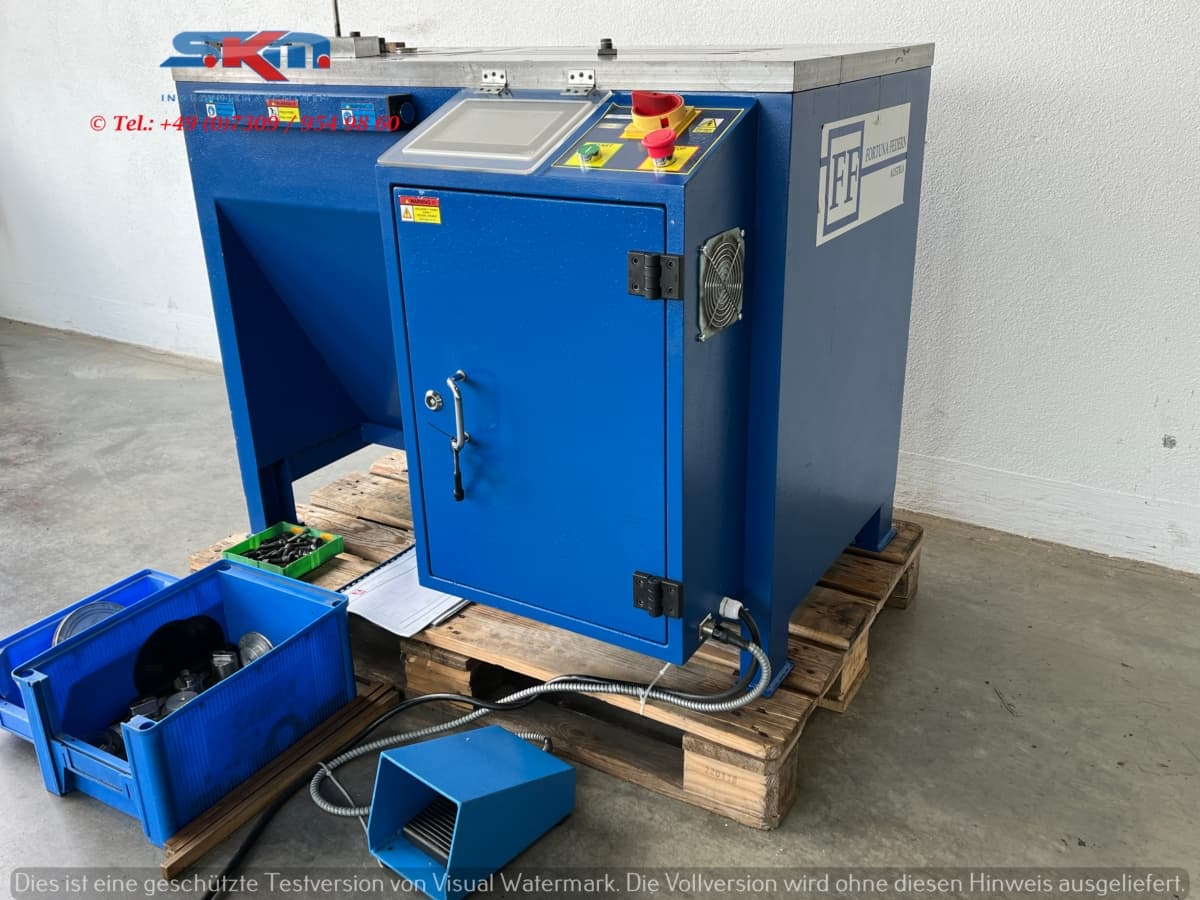

Fortuna Federn BEM 12 CNC
Beschreibung
The semi-automatic, servo-controlled CNC wire forming machine BEM CNC is for the very easy and quick production of bent parts from round wire (strips with optional accessories). Programming is fast and accurate. The controls are very simple and with push buttons you can control each Start the bending process easily. By combining separate Variable speed bend formers can be very efficient work. The bending angle for each segment is unlimited and the Speed can be set between 1 and 100%. The number of active segments is set with only one action. The intuitive Production menu makes production very convenient. It shows one progress bar, a display of the current position and a sample counter. The BEM CNC touch control unit LENZE is a generation of high-resolution Touchscreens with large and clear command keys with which Simply save or load programs with just one keystroke. Wire diameter according to EN 10270-1 DH = 4.00 - 12.00 mm (.157″-.472″) Spring diameter range = 35 - 200 mm Productivity = approx. 1,000 bends (360°) / hour Servo drive LENZE = 3.8 KW Weight approx. 550 kg
