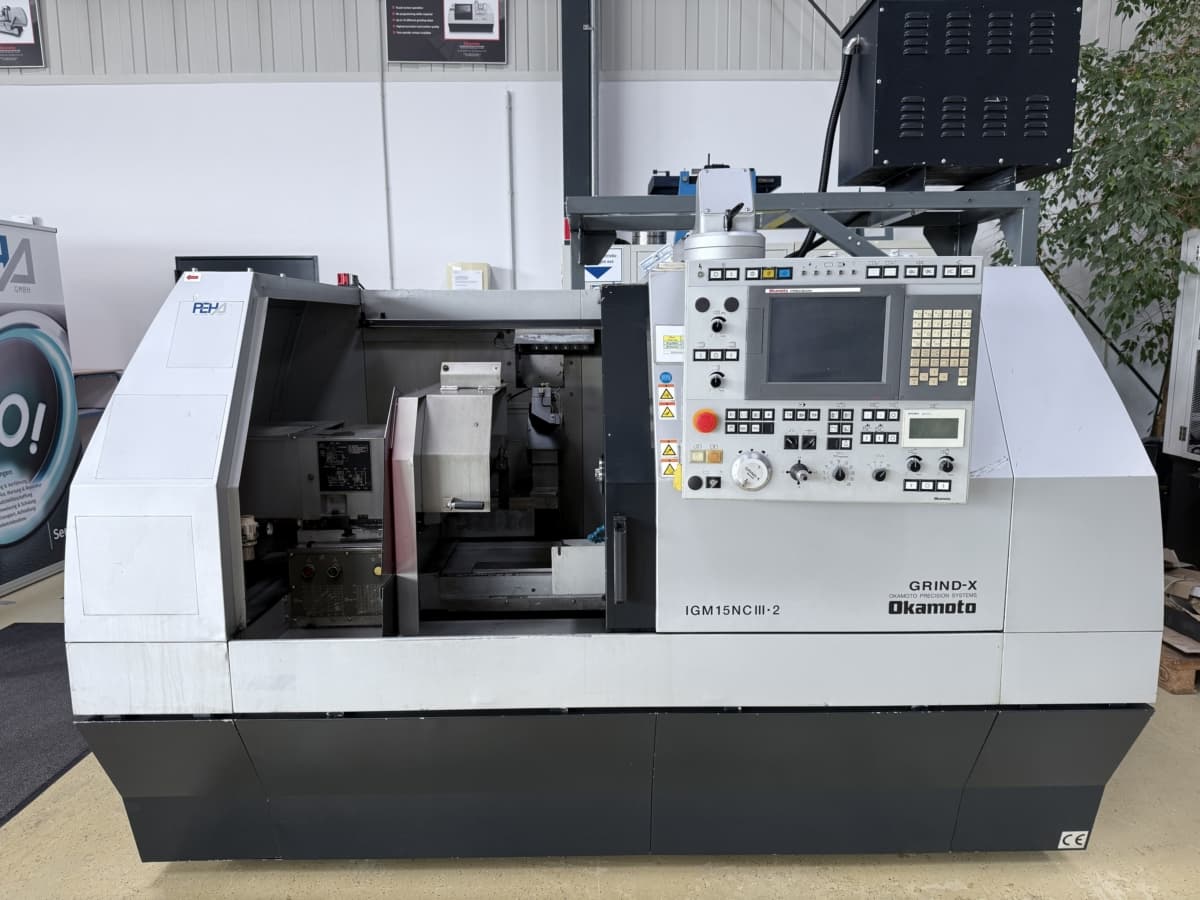

OKAMOTO IGM NCIII 2

Beschreibung

O K A M O T O High-Precision Internal Cylindrical Grinding Machine with FANUC CNC Control, System 21 i – TA, 2-Axis Simultaneous Machining For machining bores, end faces, and outer diameters in a single setup TECHNICAL DATA Internal grinding diameter: (6) - 100 mm Grinding depth approx.: 80 mm Max. table stroke: X-axis 300 mm Z-axis 500 mm Swing diameter over table: 600 mm Swing diameter in chuck cover: 260 mm Table speed: (X/Z-axis) 0.1 - 10,000 mm/min Swivel angle of workpiece spindle: -5 to +15 degrees Smallest input increment: X-axis 0.0001 mm Z-axis 0.0001 mm Workpiece spindle speed: 100 - 850 rpm Grinding spindle speeds: Standard (infinitely variable) up to 10,000 rpm and 20,000 rpm
