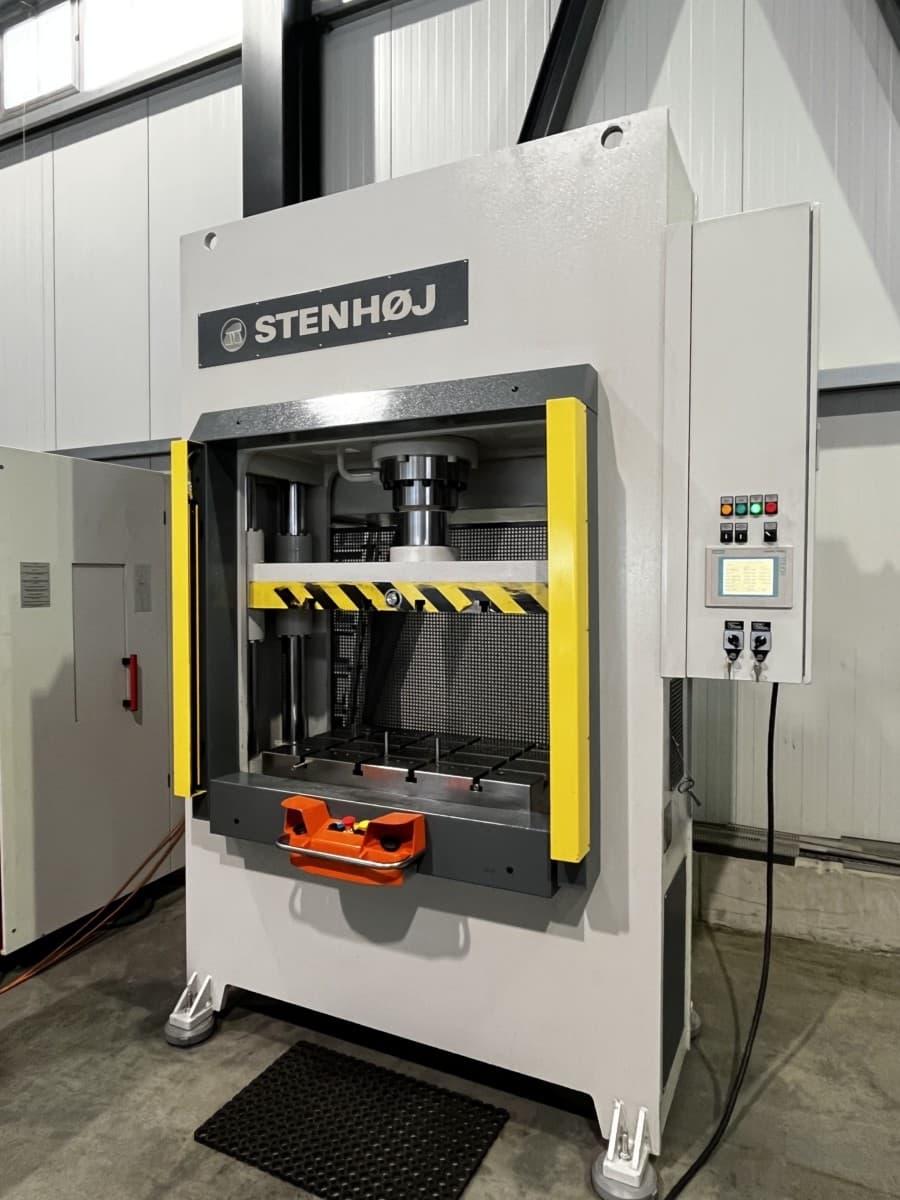

STENHOJ LPSB 100/40 B
Beschreibung
hydraulic Double-column production press in high-speed version incl. lower cylinder TU 3 controllable as die cushion or ejector, compressive force infinitely adjustable, stroke infinitely adjustable, with separate double pump and Motor, die cushion plate guided over 2 columns, 99 sleeve bores in the Table top, calculated on a grid of 50 mm Die cushion force 400 kN Ejector force 400 kN Piston stroke 180 mm Die cushion area 550 x 450 mm Upward speed 149/69/10mm/s Descending speed 128 mm/s Drive power 5.5 KW Incl. SICK C4000 light curtain with a protective field height of 900 mm on the front mounted with protection function, single-ended tripping with protection function, Two-stroke triggering with protective function, without initial approval by the operator including electronic press control TP177B, based on a Siemens PLC S7 312(313) with Pilz PLC PSS3074 designed with memory for 99 tools, Execution as press control for 2 axes incl. expansion of pressure setting incl. ram plate over four columns continuous in the machine body greatest possible guide length and enlargement of the clamping surfaces incl. each additional 3 T-slots from right to left in the table and ram plate. including reduction of the overall height to 3,200 mm, hydraulic unit at the rear lowered at the top
