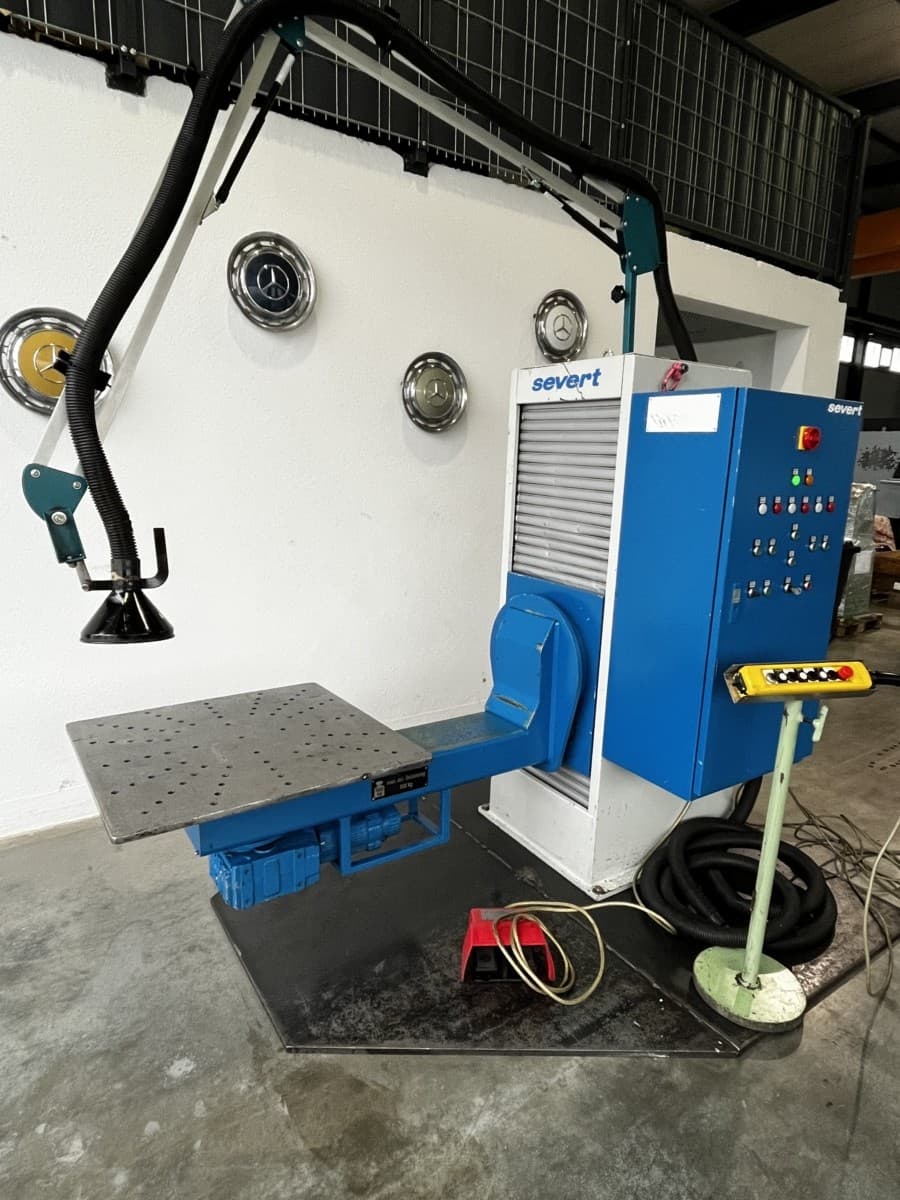

SEVERT S10.1 1HHS

Beschreibung

maximum load : 500 kg Clamping plate speed 0.25-4.0 rpm Clamping plate torque: 750 Nm Support arm speed: 2.0 rpm Support arm length: 1.0 m. Turning moment support arm: 1400 Nm Lifting speed : 2800 mm / min Height travel : 700 mm Table top : 800 x 800 mm Table size round = 550 mm Welding current return : 400 A Power connection : 400 V 16 A Machine height : 1.90 m. 2.50 m. with suction hood Tower width and depth: 1.00 m. x 2.30 m. Floor plate : 2.0 x 2.0 m. Weight : 1.4 tons. incl. hand control incl. foot control incl. extraction hood (extraction not incl.)

Technische Daten
